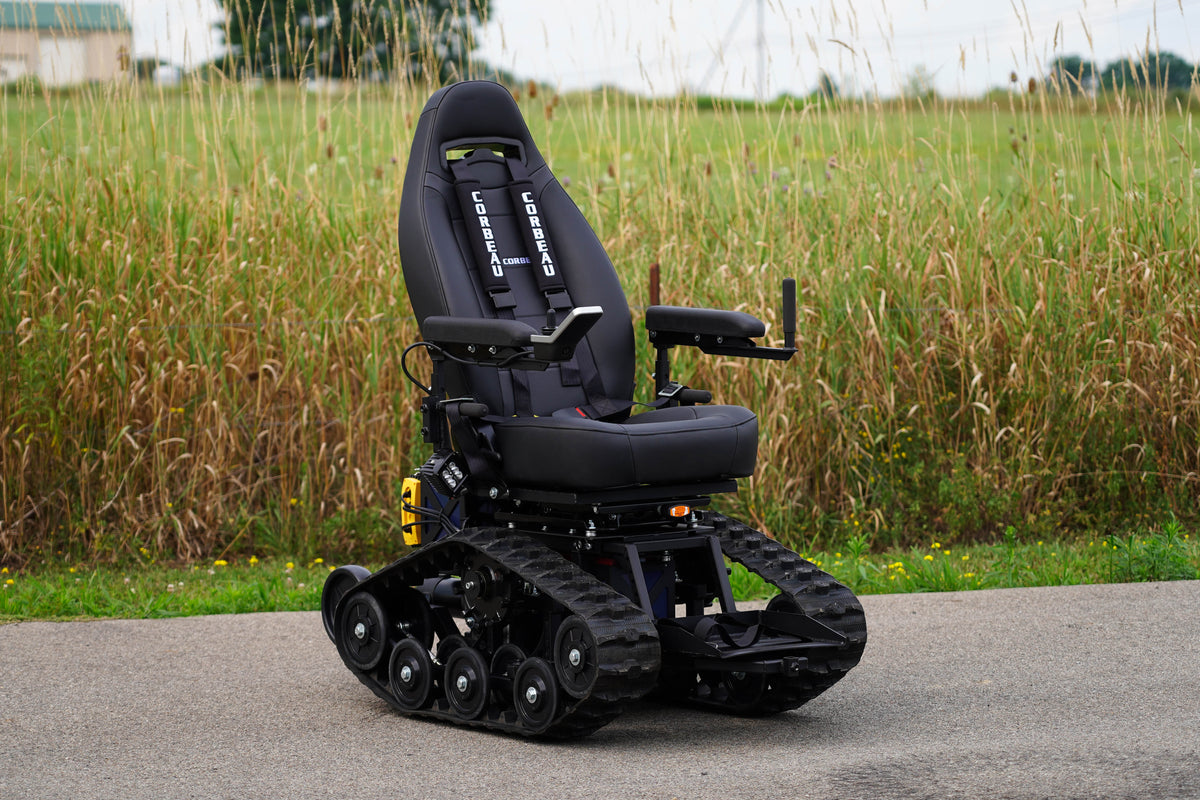

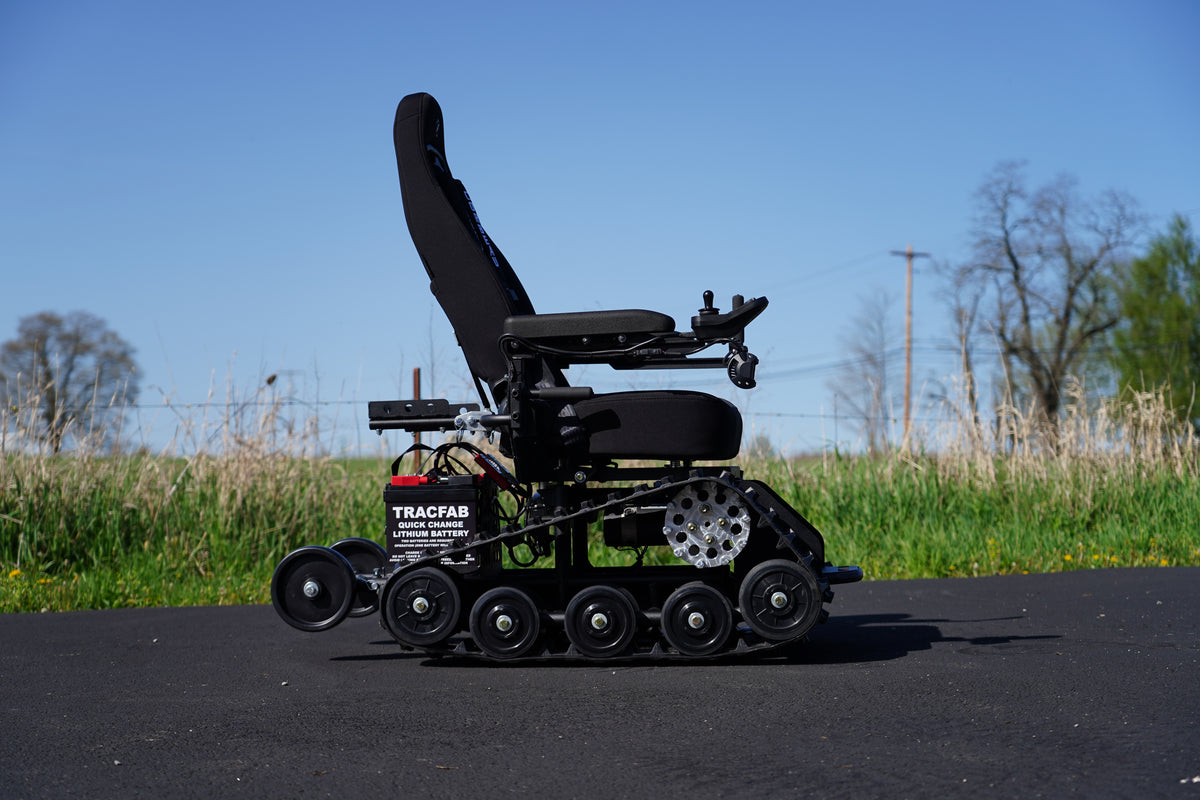

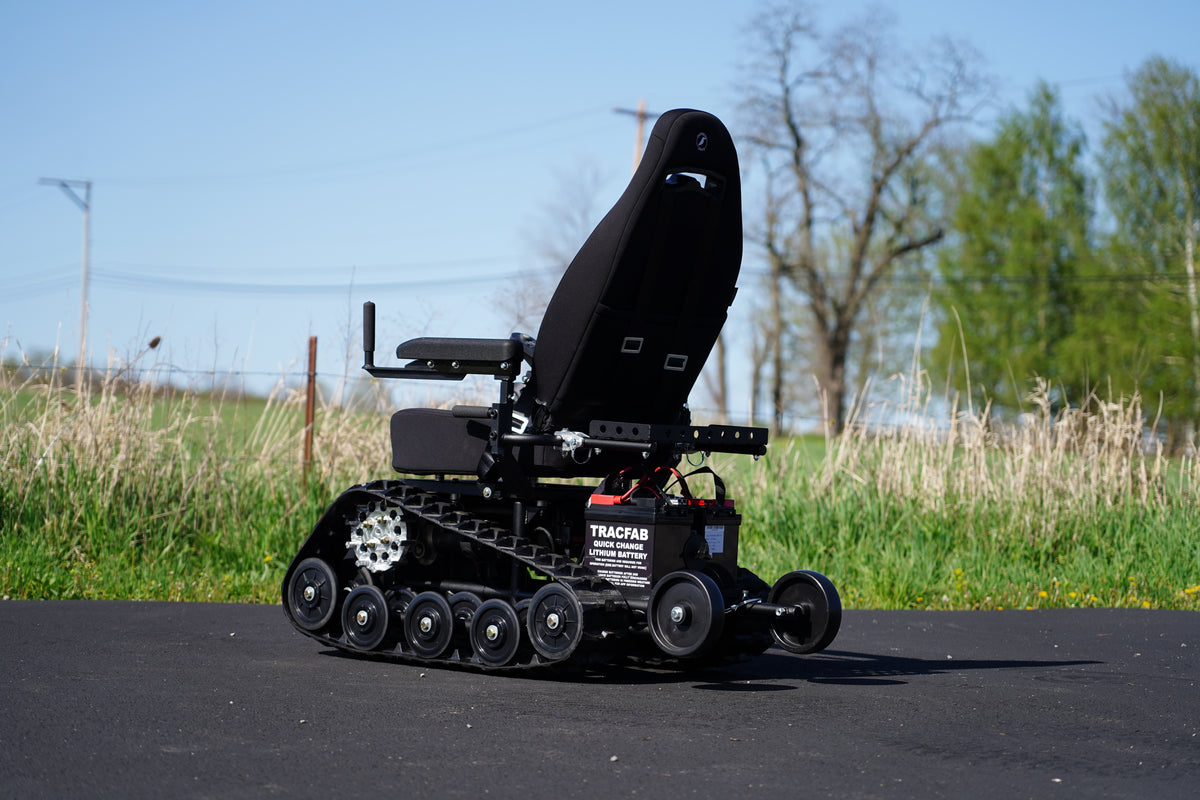

TracFab All-Terrain Tracked Wheelchair

$14,995.00

Choose your model and joystick side to make your TracFab your own.

01 — Choose your model
02 — Choose joystick side
03 — Accessories
Multi-Axis Shooting Platform$325.00
Rifle Scabbard$395.00 per side
Fishing Rod Holder$185.00 per side
Ratchet Clamps$225.00 per side
Composite Cup Holder$95.00 per side
Wired Attendant Control$895.00
Curly Cord Upgrade$95.00

Available with Wired Attendant Control.

High Output LED Headlight$305.00
Generator & Mount$1,995.00
12 Volt Accessory Power Outlet$279.00
iPad Mount$295.00 per side

04 — Your TracFab
Model
Not selected
Joystick side
Not selected
Base price
—
Configured subtotal—

Shipping and taxes are calculated at checkout.

Choose your model and joystick side to continue.

Talk with TracFab

Tracked mobility for the outdoors

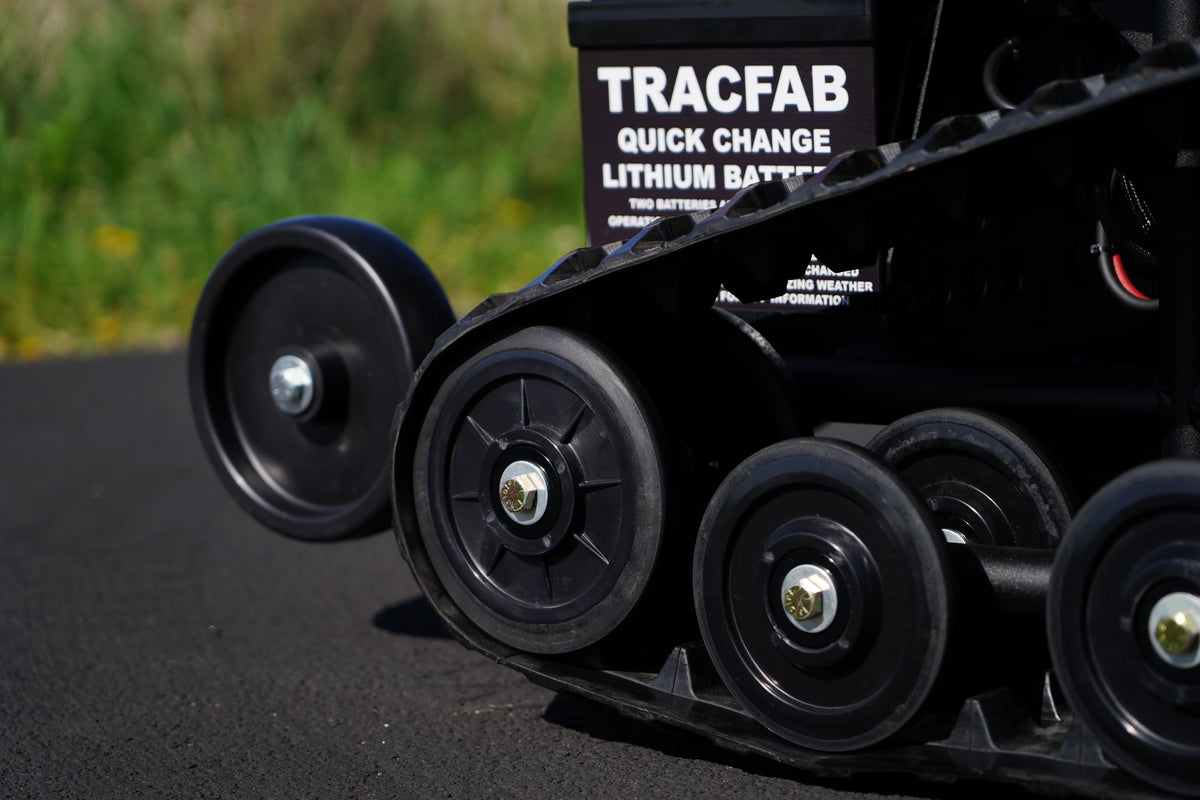

A tracked wheelchair uses tracks instead of conventional wheels to provide mobility across outdoor terrain that can be difficult for standard mobility equipment. TracFab combines dual tracks, zero-turn control, and rugged construction for outdoor access across trails, grass, gravel, snow, sand, fields, farms, and other appropriate terrain.

TracFab is available in 30-inch and 36-inch widths with removable lithium batteries, up to 5 mph top speed, and an estimated range of approximately 7–9 miles per charge. Performance varies with terrain, load, temperature, battery condition, and driving style.

KEY SPECIFICATIONS

Available widths: 30 inch and 36 inch

Unit weight: Approximately 355 lb

Maximum user weight: 350 lb

Top speed: Up to 5 mph

Estimated range: Approximately 7–9 miles per charge

Turning: Zero-turn capable

Battery system: Two 12V 103Ah TracFab lithium batteries wired in series for 24V operation

Battery weight: Approximately 21 lb each

Water use: Up to 10 inches of standing water when conditions are safe

Range and speed vary with terrain, user weight, temperature, battery condition, hills, sand, mud, snow, frequent turning, and driving style.

DIMENSIONS / FIT

Overall width: 30 inches or 36 inches, measured from the outside edge of one track to the outside edge of the other track

Overall length: Approximately 56 inches

Overall height: Approximately 55 inches

30 Inch Narrow: The better choice when doorway clearance, ramps, vans, gates, garages, storage, and tighter access are important.

36 Inch Standard: Six inches wider and a good choice when additional room is preferred and width clearance is less of a concern.

Measure the openings, ramps, vehicle access, and storage areas you expect to use before choosing your model.

SWAPPABLE LITHIUM POWER

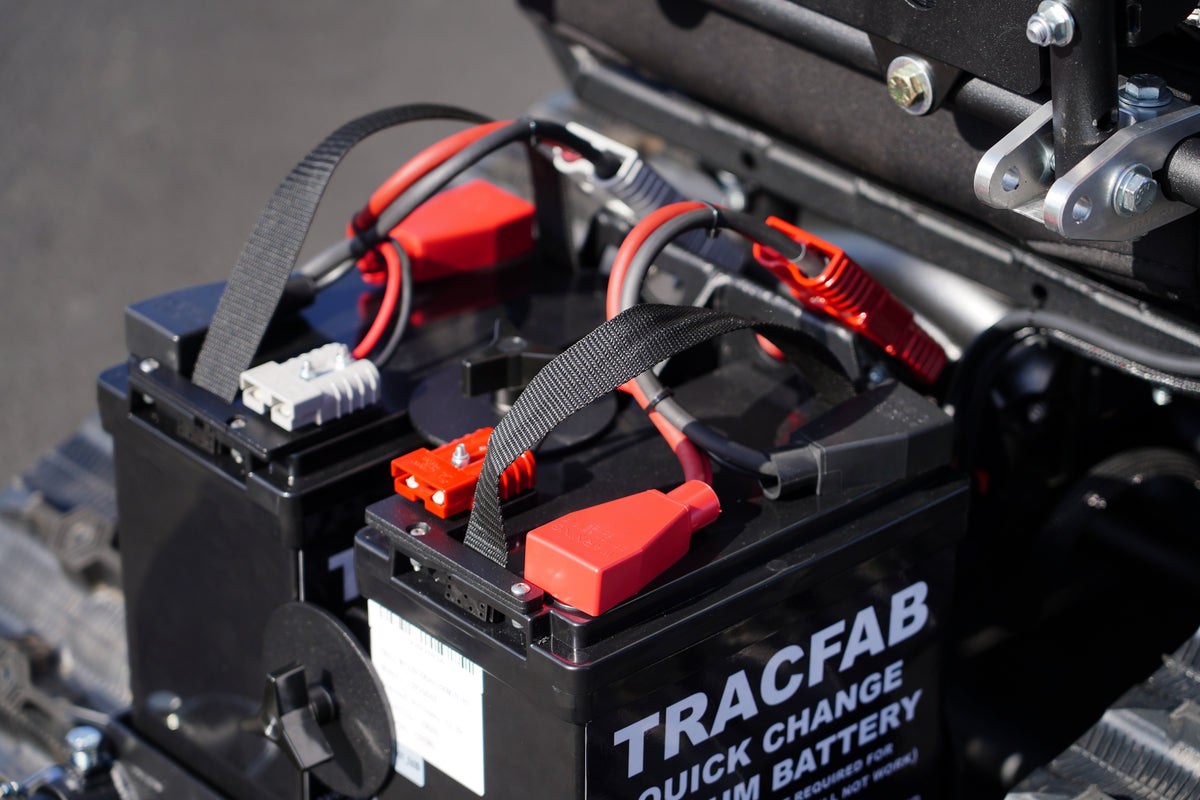

TracFab uses two removable 12V 103Ah lithium batteries wired in series to create a 24V system. Each battery weighs approximately 21 lb.

Both batteries are required for normal operation and should always be changed as a pair. Turn the joystick power off before removing or installing batteries. The system is not designed for hot-swapping.

A charged spare pair can be installed when additional runtime is needed, allowing you to get back to your day without waiting for the batteries in the TracFab to recharge.

The included TracFab smart charger is designed for the TracFab lithium battery system. A deeply discharged pair will typically require approximately 10–12 hours for a full recharge, so overnight charging is the practical expectation for most owners.

Use only TracFab-approved batteries and charging equipment.

FREIGHT & DELIVERY

TracFab units are shipped by freight.

Crate, freight, and insurance is $795 to most locations east of the Mississippi River. Freight to western and select other locations is confirmed before the order is finalized.

Accessories, applicable taxes, and any destination-specific charges are additional where applicable.

If your location requires a freight quote, contact TracFab and we will confirm delivery cost before payment is finalized.

WARRANTY

TracFab unit: 1-year warranty for qualifying manufacturing defects, beginning on the original purchase date.

TracFab lithium batteries: 5-year warranty through the battery manufacturer for qualifying battery defects.

Unit warranty coverage applies to the original owner and is not automatically transferable.

Warranty coverage does not include normal wear, cosmetic damage, misuse, abuse, neglect, improper charging or storage, improper transport, unauthorized repairs or modifications, or damage caused by non-approved batteries, chargers, or components.

Contact info@tracfab.com for warranty assistance. Full warranty conditions are provided in the TracFab Owner's Manual.

FAQs

Which TracFab width should I choose?

Choose the 30 Inch Narrow when fitting through tighter openings, ramps, vans, gates, or storage areas is important. The 36 Inch Standard provides six additional inches of overall width when clearance is less of a concern.

How long does it take to recharge?

A deeply discharged pair of TracFab lithium batteries will typically require approximately 10–12 hours to fully recharge. For most owners, overnight charging is the practical routine.

Can I carry a charged spare set of batteries?

Yes. TracFab's two lithium batteries are removable and can be replaced with a charged spare pair. Always power the joystick off and replace both batteries together.

Can a TracFab travel through water?

TracFab may be operated in up to 10 inches of standing water when conditions are safe. Terrain, current, footing, depth, and surrounding conditions must always be evaluated before entering water.

What if I am unsure which model or accessories are right for me?

Most TracFab purchases involve some conversation with our team. Use Talk With TracFab or the Get Your TracFab inquiry page and we can help you work through the model, joystick side, accessories, delivery, and next steps.
